AccuVein
AccuVein AV400
Handheld vein illuminator
- Maps veins onto the skin
- Shows valves and bifurcations
- Handheld or hands free
AccuVein · Vein Viewers
AccuVein AV500

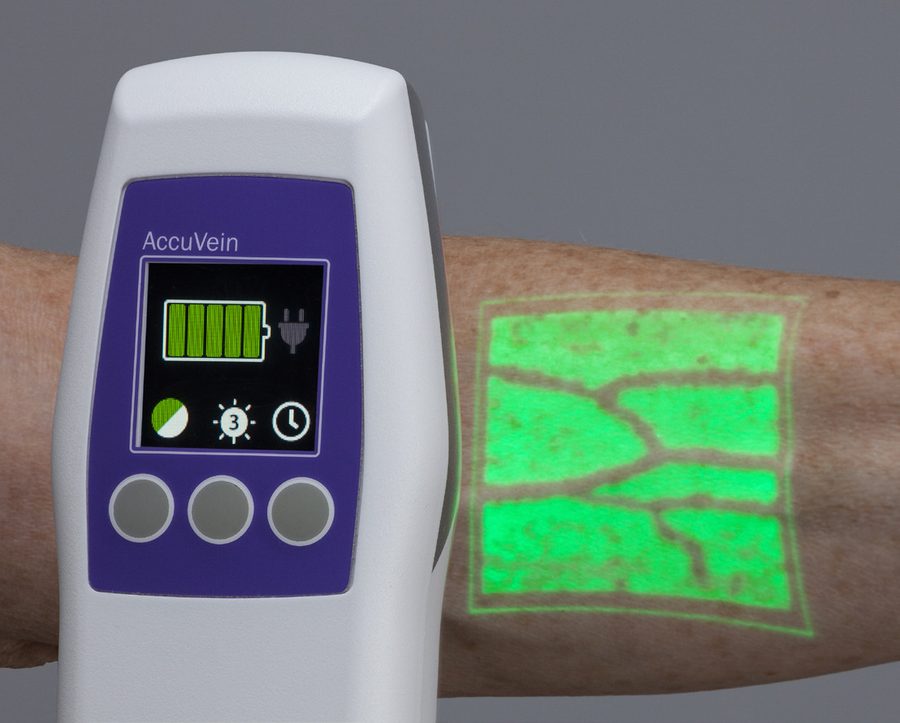

The AccuVein AV500 is a handheld, non-contact vein visualisation device that displays the surface vasculature on the skin to support venous access. It weighs 283 g, runs unplugged from a rechargeable battery, and can be converted to hands-free use on a stand. It is compatible with existing AV400 and AV300 stands and cradles.
- Improves first attempt success
- Reduces repeat sticks
- Paediatric and geriatric use
Installation, clinical application training and 24 months warranty are included on every supply.
Key features
- Non-contact vein visualisation shown directly on the skin surface
- Helps locate patent veins and avoid valves and bifurcations
- No calibration, adjustment or preventative maintenance required
- Works at four inches or more from the skin surface
- Real time image tolerates both patient and clinician movement
- Works on a broad range of patients including neonates and dark skinned patients
- Sealed medical grade housing with no vents, wipes clean without special tools
- Optional protective cover for isolation settings and added cleaning cover
Specifications
| Weight | 283 g |
|---|---|
| Size | 5 cm x 6 cm x 20 cm |
| Run time | Typically 2 hours |
| Charge time | 2 to 4 hours, depending on battery discharge level |
| Battery | Lithium ion, 3.6 V, 3100 mAh |
| Working distance | Four inches or more from the skin surface |
| Centre line accuracy | Permanently aligned, accurate to less than the width of a human hair |
| Laser classification | Class 1 laser product, IEC/EN 60825-1:2014 |
| Wavelengths | 520 nm and 830 nm |
| Pulse energy | 485 nJ and 270 nJ |

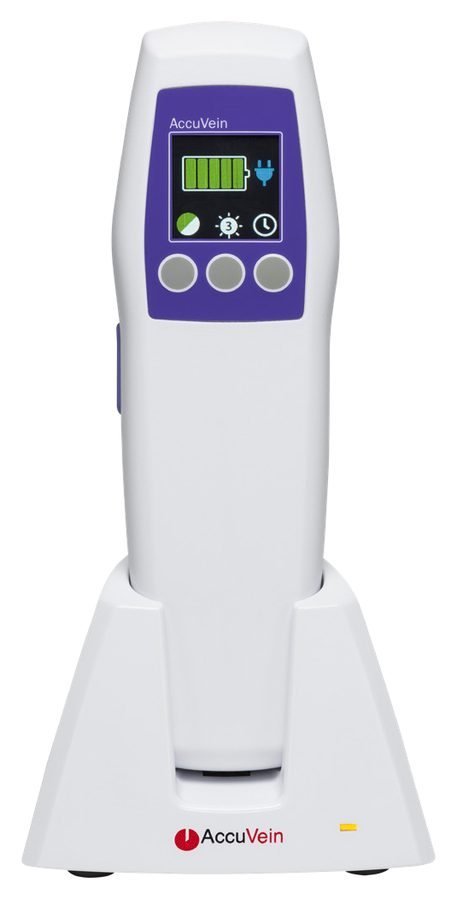

| Components included | Battery installed, desktop charging cradle, worldwide power supply (10 W), country and US plug |
| Compatibility | AV400 and AV300 stands and cradles, charging may be slower using HF470 |
| Optional stands | HF570 charging wheeled stand, HF550 wheeled stand, HF510 table or pole clamp |
| Optional cover | AccuVein cover, part number CL025 |
Taken from the manufacturer documentation and subject to change without notice. Ask us for the current datasheet before you specify or tender.
Typical applications
- Venipuncture and blood draw
- IV cannulation
- Paediatric and neonatal vascular access
- Use in isolation settings with the protective cover
What is included
InstallationCommissioned on site by our engineers and calibration verified before handover.
TrainingClinical application training on the protocols your department will run.
Warranty24 months standard, extendable at the time of order.
ServiceAMC and CAMC contracts with preventive visits and spares held locally.
Frequently asked questions
What is included in the price of the AccuVein AV500?
On site installation and commissioning by our own engineers, clinical application training for your staff, and 24 months standard warranty. Consumables and accessories are quoted separately so you can see exactly what you are paying for.
How long does delivery take for the AccuVein AV500?
Stocked items usually reach you within seven working days of a confirmed order. Configured systems are built to order by the manufacturer, and we confirm the lead time in writing before you release the purchase order.
Can we see the AccuVein AV500 demonstrated before we order?
Yes. We bring the equipment to your facility so the team can run it on a real workflow before committing. Ask for a demonstration on +91 98844 97422 and we will arrange a date.
Is service and AMC available for the AccuVein AV500?
Yes. Annual and comprehensive maintenance contracts are available with scheduled preventive visits, printed calibration records for your quality file, and priority response. Spares and consumables for this system are held locally.
