Acelite 160

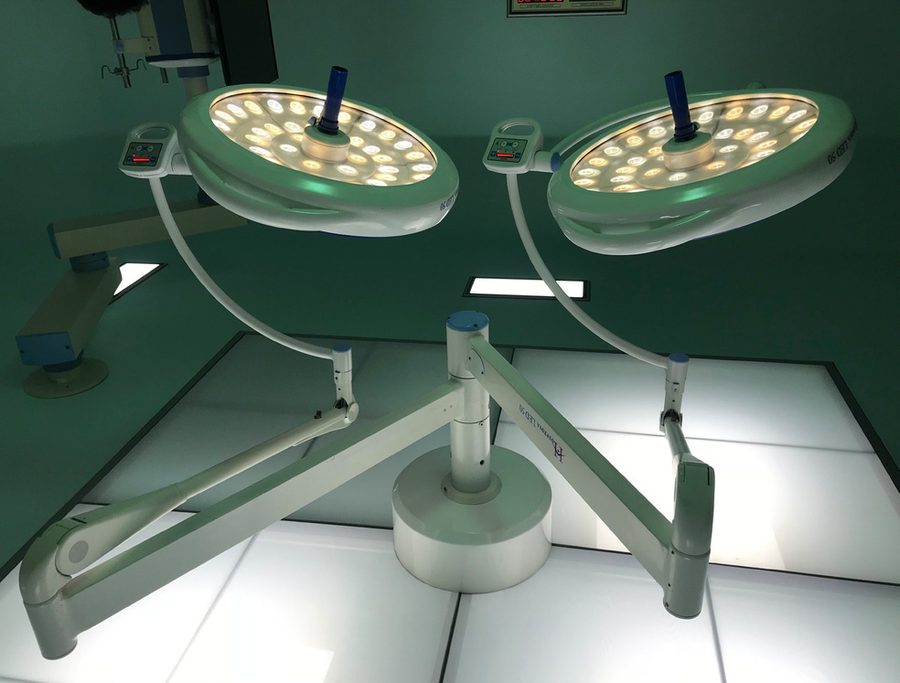

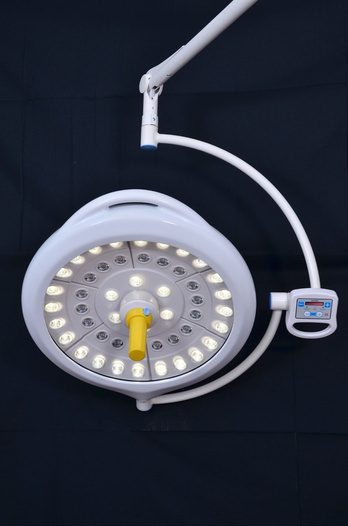

Acelite LED operation theatre lights are available in single, double and triple dome ceiling versions as well as mobile and wall mounted models, all built around the 160,000 lux LED 50 lamp head. The head uses German OSRAM LED modules with shadowless lenses, a 500 mm dome and a German ONDAL arm that allows full 360 degree rotation. Camera, monitor and DVR recording packages can be added.
- Shadowless illumination
- Colour range options
- Ceiling, wall or mobile mount
Installation, clinical application training and 24 months warranty are included on every supply.
Key features
- Nine configurations: single, double and triple dome ceiling, mobile and wall
- German OSRAM LED modules with specially designed shadowless lenses
- 500 mm lamp head on a German ONDAL arm with 360 degree rotation
- Three lighting modes: endo mode, surface mode and deep cavity illumination
- Spot diameter adjustable from 130 to 300 mm by hand or motorised control
- Dome shaped for laminar flow to DIN 1946-4 and SWKI Class 5
- Removable handle that can be sterilised, smooth head surface for disinfection
- No halogens, CFCs or mercury; stated 70 percent lower energy use
Specifications
| Light intensity | Up to 160,000 lux |
|---|---|
| Adjustable colour range | 4500 K |
| Colour rendition index | 96 or higher |
| Spot diameter | 130 to 300 mm, adjustable |
| Lighting depth | 1250 mm or more |
| Supply voltage | 220 to 240 V |
| Power consumption at full power | 48 W |
| LED life | More than 50,000 hours |
| Lamp head diameter | 500 mm (LED 50 double dome) |
| Head rotation | 360 degrees on each arm |
| Models available | ASDC, ADDC, AML, AWL, ATDC, ADCC, ATCC, ADCCM, ATCCM |
| Camera options | 200 K pixel, 400 K pixel, 2 megapixel and 3 megapixel systems |
| Camera image resolution | Up to 530 lines |
| Recording option | DVR hard disk recorder with 1 TB drive and multi screen display |
| Ceiling clearance | Normal height version above 9 ft; low height version 8 ft to 9 ft |
Taken from the manufacturer documentation and subject to change without notice. Ask us for the current datasheet before you specify or tender.
What is included
InstallationCommissioned on site by our engineers and calibration verified before handover.
TrainingClinical application training on the protocols your department will run.
Warranty24 months standard, extendable at the time of order.
ServiceAMC and CAMC contracts with preventive visits and spares held locally.
Frequently asked questions
What is included in the price of the Acelite 160?
On site installation and commissioning by our own engineers, clinical application training for your staff, and 24 months standard warranty. Consumables and accessories are quoted separately so you can see exactly what you are paying for.
How long does delivery take for the Acelite 160?
Stocked items usually reach you within seven working days of a confirmed order. Configured systems are built to order by the manufacturer, and we confirm the lead time in writing before you release the purchase order.
Can we see the Acelite 160 demonstrated before we order?
Yes. We bring the equipment to your facility so the team can run it on a real workflow before committing. Ask for a demonstration on +91 98844 97422 and we will arrange a date.
Is service and AMC available for the Acelite 160?
Yes. Annual and comprehensive maintenance contracts are available with scheduled preventive visits, printed calibration records for your quality file, and priority response. Spares and consumables for this system are held locally.
