Geratherm · Body Plethysmography
Bodystik

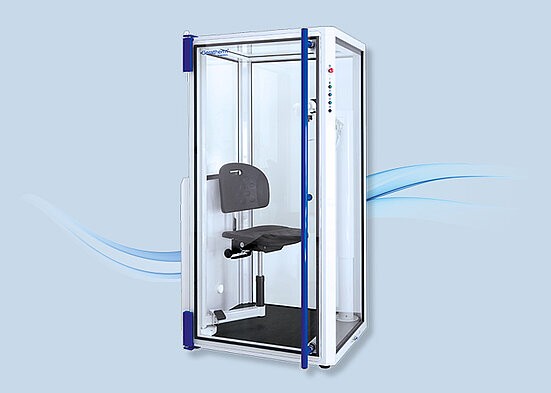

The Geratherm Bodystik is a volume constant body plethysmograph for lung volume and airway resistance testing. The cabin is built from aluminium with five large tempered safety glass windows, and the measuring head adjusts electrically to the patient. It runs Blue Cherry software and can operate standalone or on a hospital network.
- Easy cabin entry
- Lung volumes and resistance
- ATS and ERS quality checks
Installation, clinical application training and 24 months warranty are included on every supply.
Key features
- Volume constant cabin for TGV, resistance, spirometry, flow volume and MVV

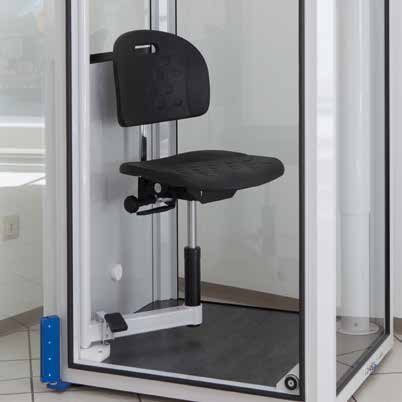

- Swivable patient chair and a very low door step for easier cabin entry

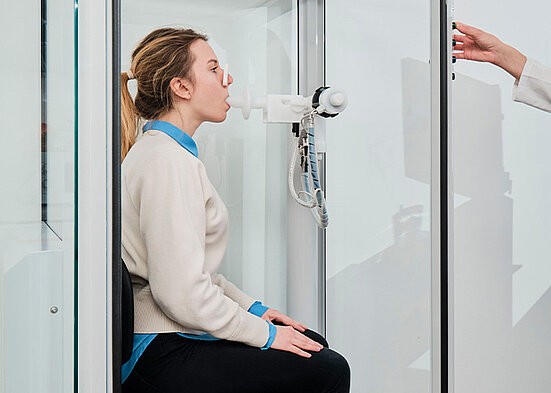

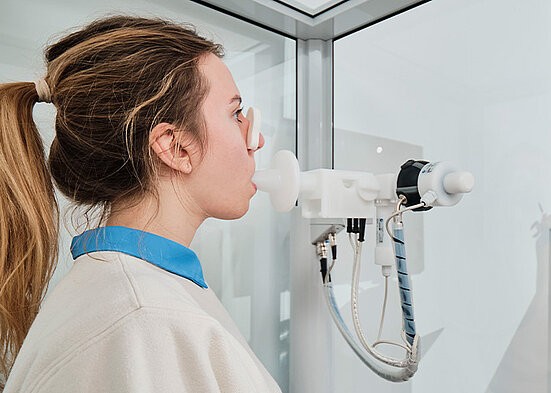

- Measuring head adjusts electrically at the press of a button, even with the door shut
- Electromagnetic door lock opens from inside or outside, LED confirms door closed

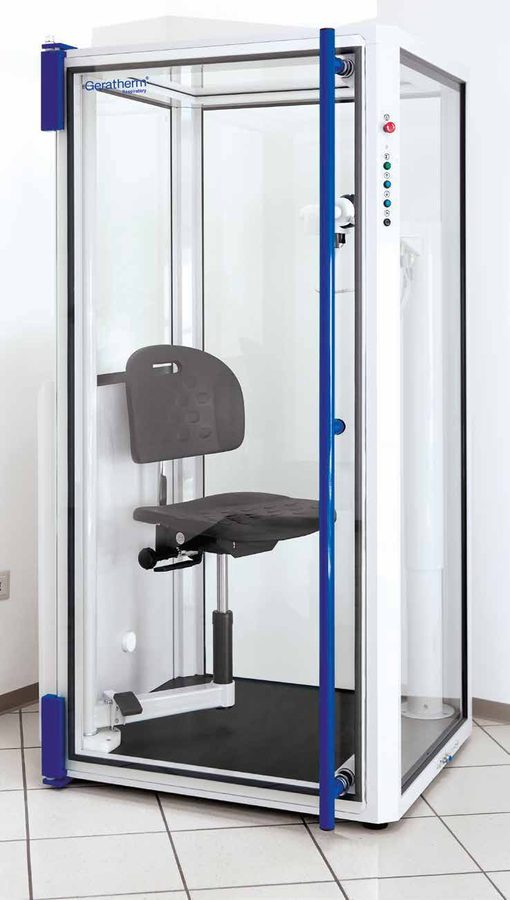

- Aluminium frame with five large tempered safety glass windows
- Intercom, automated procedures and on screen instructions for patient management
- Reproducibility checked against ATS/ERS criteria with curve overlay
- GDT and HL7 interfaces, SQL database for networked or single user use
Specifications
| Body box principle | Volume constant |
|---|---|
| Test programs | Spirometry, flow volume, TGV, resistance, MVV |
| Test procedures | Individual test, pre/post, broncho provocation |
| Options | CO diffusion, MIP/MEP, compliance, Rocc/Rint |
| Diagnosis | Semi automatic according to ATS/ERS, proprietary interpretation graph |
| Quality control | Acceptability and repeatability according to ATS/ERS |
| Predicted sets | GLI, ECCS, NHANES III, Zapletal and others |
| Predicted presentations | Predicted, LLN/ULN, per cent predicted, Z score |
| Flow sensor | Differential pressure, Ergoflow |
| Flow accuracy | Meets all ATS/ERS specifications |
| Box pressure sensor | Mass flow measurement |
| Mouth pressure sensor | Semiconductor |
| PC interface | USB |
| Software | Blue Cherry, requires Windows XP SP2 or newer, SQL database |
Taken from the manufacturer documentation and subject to change without notice. Ask us for the current datasheet before you specify or tender.
What is included
Frequently asked questions
What is included in the price of the Bodystik?
On site installation and commissioning by our own engineers, clinical application training for your staff, and 24 months standard warranty. Consumables and accessories are quoted separately so you can see exactly what you are paying for.
How long does delivery take for the Bodystik?
Stocked items usually reach you within seven working days of a confirmed order. Configured systems are built to order by the manufacturer, and we confirm the lead time in writing before you release the purchase order.
Can we see the Bodystik demonstrated before we order?
Yes. We bring the equipment to your facility so the team can run it on a real workflow before committing. Ask for a demonstration on +91 98844 97422 and we will arrange a date.
Is service and AMC available for the Bodystik?
Yes. Annual and comprehensive maintenance contracts are available with scheduled preventive visits, printed calibration records for your quality file, and priority response. Spares and consumables for this system are held locally.
