Geratherm · DLCO
Diffustik

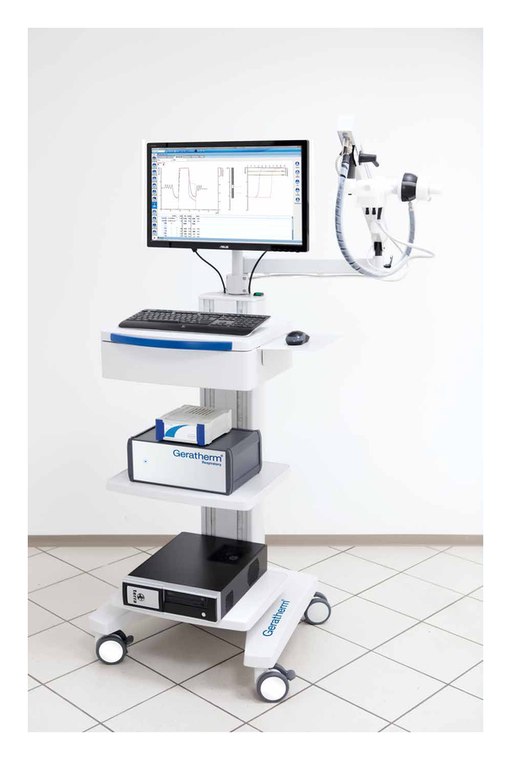

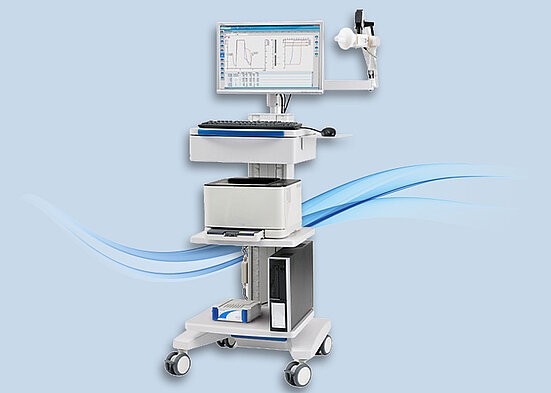

The Geratherm Diffustik is a single breath carbon monoxide diffusion system for measuring gas transfer alongside spirometry and flow volume testing. The measuring head sits on a stand that swivels through a large range, so patients can be tested seated or standing. It runs on Blue Cherry software and can be used as a single unit or networked with review workstations in a hospital department.
- Rapid infrared gas analysis

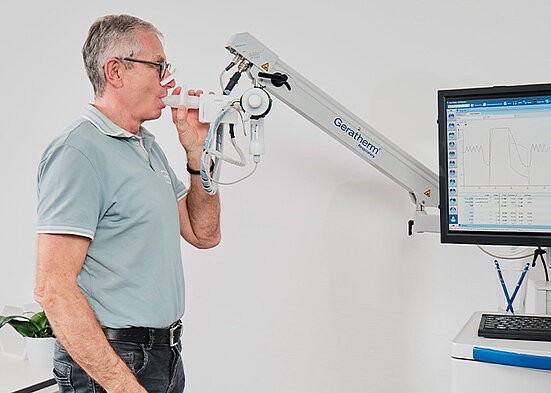

- Standing or seated measurement
- Networkable over GDT or HL7
Installation, clinical application training and 24 months warranty are included on every supply.
Key features
- Single breath CO diffusion with spirometry, flow volume and MVV in one system

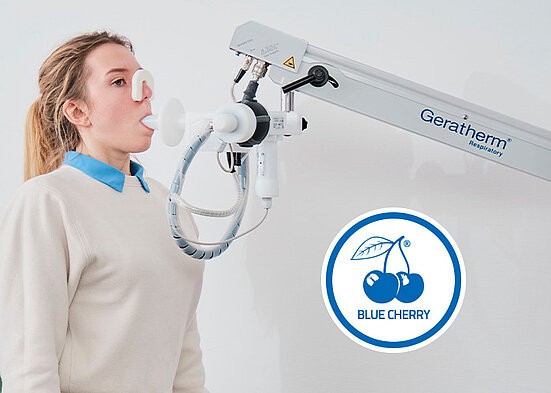

- Measuring head adjusts quickly over a large swivable range for sitting or standing
- Head swivels upward and downward by approximately 60 degrees
- CO and CH4 shown against exhaled volume to assess distribution disorders
- Offline processing: washout and sample volume can be corrected manually
- Modular: extendable with MIP/MEP and ROCC, or integrated into the Bodystik
- Manoeuvre quality graded to ATS/ERS criteria with patient cooperation feedback
- GDT and HL7 interfaces for connection to the local PMS or HIS
Specifications
| Test programs | Spirometry, flow volume, CO diffusion, MVV |
|---|---|
| Test procedures | Individual test, pre/post, broncho provocation |
| Options | MIP/MEP, compliance, Rocc/Rint |
| Diagnosis | Semi automatic according to ATS/ERS, proprietary interpretation graph |
| Quality control | Acceptability and repeatability according to ATS/ERS |
| Predicted sets | GLI, ECCS, NHANES III, Zapletal and others |
| Predicted presentations | Predicted, LLN/ULN, per cent predicted, Z score |
| Flow sensor | Differential pressure, Ergoflow |
| Flow accuracy | Meets all ATS/ERS specifications |
| Mouth pressure sensor | Semiconductor |
| CO measurement | Infrared absorption |
| CH4 measurement | Infrared absorption |
| PC interface | USB |
| Software | Blue Cherry, requires Windows XP SP2 or newer, SQL database |
Taken from the manufacturer documentation and subject to change without notice. Ask us for the current datasheet before you specify or tender.
What is included
Frequently asked questions
What is included in the price of the Diffustik?
On site installation and commissioning by our own engineers, clinical application training for your staff, and 24 months standard warranty. Consumables and accessories are quoted separately so you can see exactly what you are paying for.
How long does delivery take for the Diffustik?
Stocked items usually reach you within seven working days of a confirmed order. Configured systems are built to order by the manufacturer, and we confirm the lead time in writing before you release the purchase order.
Can we see the Diffustik demonstrated before we order?
Yes. We bring the equipment to your facility so the team can run it on a real workflow before committing. Ask for a demonstration on +91 98844 97422 and we will arrange a date.
Is service and AMC available for the Diffustik?
Yes. Annual and comprehensive maintenance contracts are available with scheduled preventive visits, printed calibration records for your quality file, and priority response. Spares and consumables for this system are held locally.
