Geratherm · CPET
Ergostik

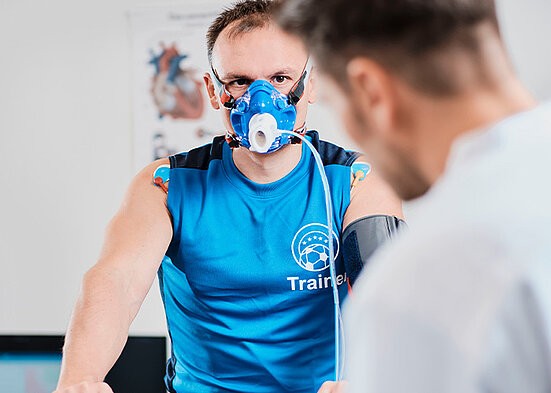

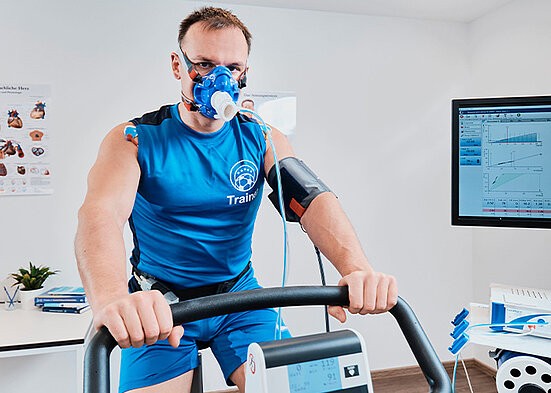

The Geratherm Ergostik is a cardio pulmonary exercise testing system that measures breath by breath oxygen uptake and carbon dioxide output during exercise. The flow sensor is light with low dead space, and screen layouts and reports can be configured per user. Optional modules add resting energy expenditure, training plans and ambient condition compensation.
- Light weight flow sensor
- Automatic threshold detection
- Optional training and REE
Installation, clinical application training and 24 months warranty are included on every supply.
Key features
- Cardio pulmonary exercise testing with spirometry, flow volume and MVV as standard

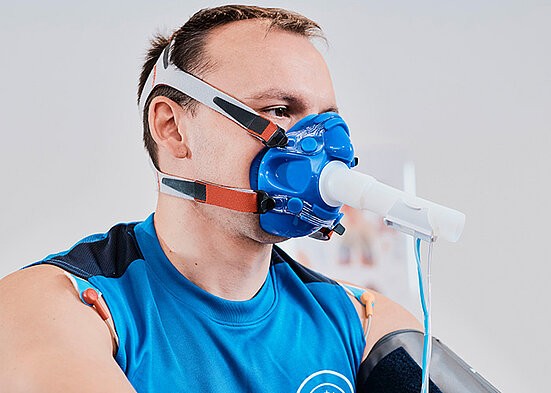

- Light flow sensor with low dead space for patient comfort
- Screen display and report configurable with graphs, tables and diagnosis text
- Thresholds detected by combining several models in software
- Optional REE module measures basal metabolic rate
- Optional training module generates individual training plans
- Ambient influences compensated using the Ambistik and CO2stik options
- GDT and HL7 interfaces, SQL database, WYSIWYG report generator
Specifications
| Standard tests | CPET, spirometry, flow volume, MVV |
|---|---|
| Optional tests | REE, breathing pattern analysis, N2 washout, broncho provocation |
| Dimensions | 210 mm x 175 mm x 75 mm (L x W x H) |
| PC interface | USB 2.0 |
| Power supply | 100 to 240 V, 50 to 60 Hz, 60 VA |
| Sampling rate | 125 Hz |
| Software | Blue Cherry, requires Windows XP SP2 or newer |

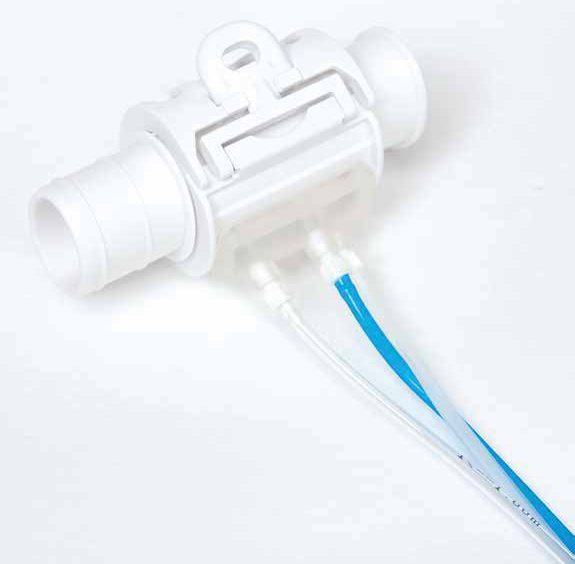

| Flow sensor | Differential pressure, Ergoflow, range plus or minus 16 L/s |
| Flow sensor dead space | Less than 32 mL |
| Flow sensor resistance | Less than 0.12 kPa/(L/s) below 14 L/s |
| O2 sensor | Electrochemical cell, range 1 to 100 per cent |
| O2 accuracy | Plus or minus 0.1 vol per cent (13 to 21 per cent), or 1 per cent FS |
| CO2 sensor | Infrared spectroscopy, range 0 to 13 per cent |
| CO2 accuracy | Plus or minus 0.1 vol per cent (2.5 to 7.5 per cent) |
Taken from the manufacturer documentation and subject to change without notice. Ask us for the current datasheet before you specify or tender.
What is included
Frequently asked questions
What is included in the price of the Ergostik?
On site installation and commissioning by our own engineers, clinical application training for your staff, and 24 months standard warranty. Consumables and accessories are quoted separately so you can see exactly what you are paying for.
How long does delivery take for the Ergostik?
Stocked items usually reach you within seven working days of a confirmed order. Configured systems are built to order by the manufacturer, and we confirm the lead time in writing before you release the purchase order.
Can we see the Ergostik demonstrated before we order?
Yes. We bring the equipment to your facility so the team can run it on a real workflow before committing. Ask for a demonstration on +91 98844 97422 and we will arrange a date.
Is service and AMC available for the Ergostik?
Yes. Annual and comprehensive maintenance contracts are available with scheduled preventive visits, printed calibration records for your quality file, and priority response. Spares and consumables for this system are held locally.
