Thorasys · Airwave Oscillometry

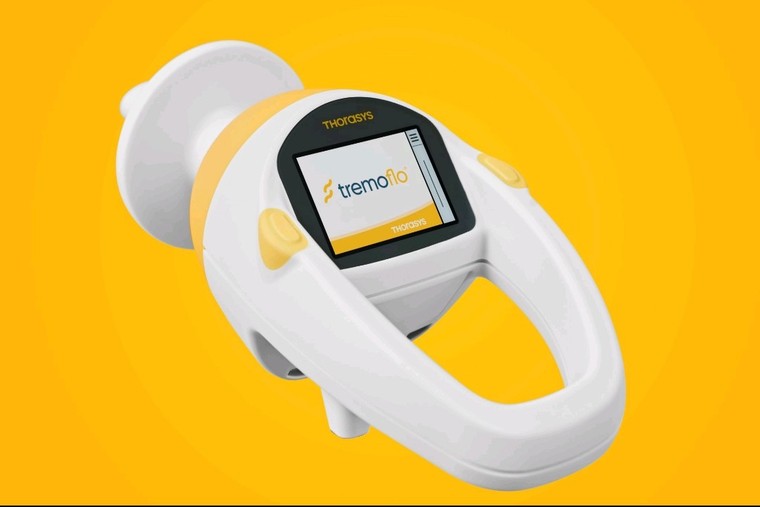

tremoflo C-100
The Thorasys tremoflo C-100 is an airwave oscillometry system that measures respiratory resistance and reactance during normal tidal breathing, so no forced expiration is required. A test takes about 20 seconds per manoeuvre and results are shown against normative values for adults and children. It suits clinics that need small airway information or that test patients who cannot perform spirometry.
- No forced expiration needed
- Test in a few minutes, 700 g
- Adult and paediatric normals
Installation, clinical application training and 24 months warranty are included. Manufacturer brochure available on request.
Key features
- Tidal breathing test, no forced expiration needed
- Gives respiratory mechanics information related to the small airways
- Test completed in a few minutes, three repetitions per guideline
- Automated pre and post bronchodilator workflow
- Inspiratory and expiratory intra-breath analysis
- Normative values provided for both adult and paediatric patients
- Green to red gauge scale shows whether results fall within normative values
- Portable at 0.7 kg, daily calibration takes under 30 seconds
Specifications
| Measurement principle | Oscillometry, forced oscillation technique (FOT) |
|---|---|
| Oscillator technology | Breathe-through vibrating mesh, patented |
| Measurement mode | AOS: pseudo-random noise |
| Measurement duration | 20 sec typical, user adjustable |
| Repetitions | 3 repetitions as per guideline |
| Patient interface | Bacterial and viral filter with integrated mouthpiece |
| Dimensions, handheld | 19 x 13 x 14 cm |
| Weight, handheld | 0.7 kg |
| Dimensions, handheld with cradle | 21 x 14 x 24 cm |
| Weight, handheld with cradle | 1.7 kg |
| Daily calibration | Less than 30 seconds |
| Performance | Meets and exceeds ERJ 2003, 22: 1026 to 1041 |
| Markets covered | Canada, United States, Israel, European Community, Australia and New Zealand |
Specifications are taken from the manufacturer documentation and may change without notice. Ask us for the current datasheet before you specify or tender.
Typical applications
- Asthma
- COPD
- Assessment of peripheral or small airway impairment
- Bronchodilator response testing
- Testing young children who cannot perform spirometry
Talk to us
Let us help you specify the right system.
Tell us the clinical requirement. We will recommend a configuration, arrange a demonstration at your facility and prepare a detailed quotation.
