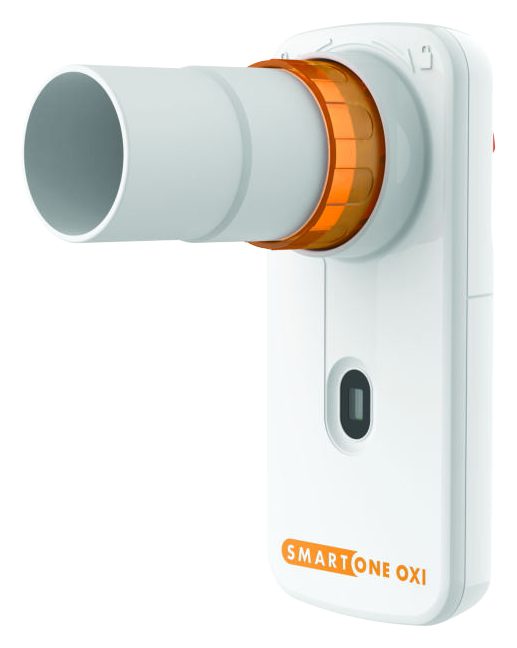

Smart One
Smart One is a pocket sized MIR device that measures FEV1 and PEF in a one second test and sends the result to a smartphone over Bluetooth. It is aimed at day to day monitoring of known respiratory disease rather than full diagnostic spirometry. The Smart One Oxi version also measures blood oxygen saturation and heart rate.
- One second test
- Reusable turbine, no calibration
- Oxi version adds SpO2 and BPM
Installation, clinical application training and 24 months warranty are included. Manufacturer brochure available on request.
Key features

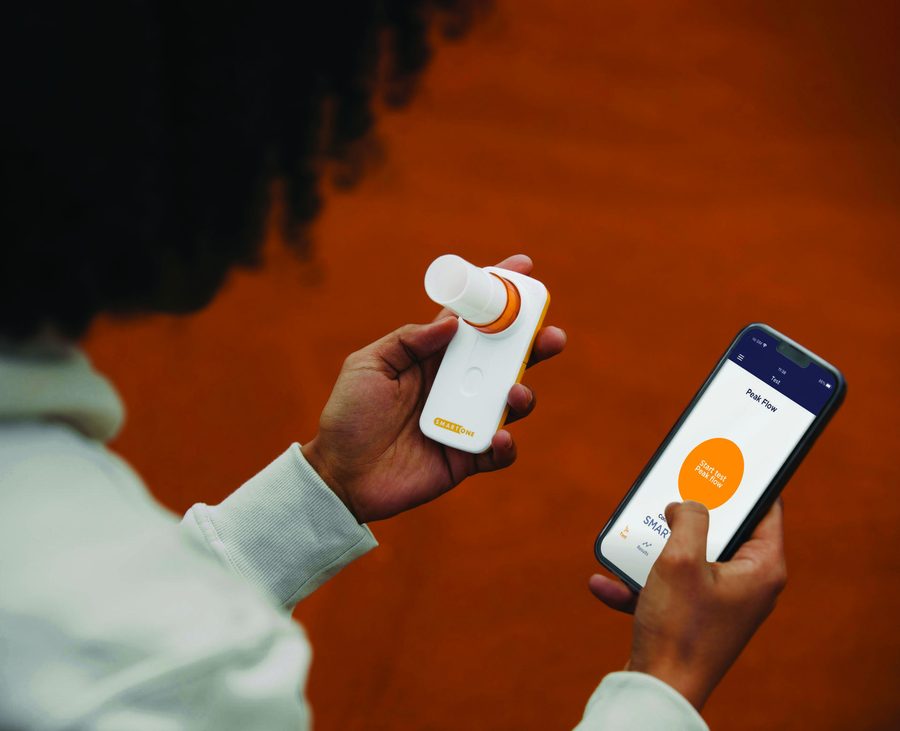

- One second test with results shown in the free MIR SMART ONE app
- Bi-directional digital turbine, single patient reusable turbine included
- Bluetooth pairing between device and app, iOS and Android
- Test results stored in the app and shared as PDF with the treating doctor
- Personalised electronic diary for symptoms and notes on each test
- Smart One Oxi adds a touch SpO2 sensor with heart rate measurement
- No turbine calibration or disinfection required, no antiviral filter needed
Specifications
| Flow sensor | Bi-directional digital turbine |
|---|---|
| Flow range | ±16 L/s (960 L/min) |
| Volume accuracy | ±2.5% or 0.05 L |
| Peak flow accuracy | ±10% or 0.33 L/s |
| Dynamic resistance | Less than 0.5 cm H2O/L/s |
| Measured parameters | FEV1, PEF |
| Oximetry parameters (Oxi version) | SpO2 min, mean and max, BPM min, mean and max, Ttotal |
| SpO2 range and accuracy (Oxi version) | 70% to 100%, ±1.9% |
| Pulse rate range (Oxi version) | 30 to 200 BPM, ±2 BPM |
| Dimensions | 49 x 109 x 21 mm |
| Weight | 60.7 g including batteries |
| Power supply | 2 x AAA 1.5 V batteries |
| Connectivity | Bluetooth 5.0 ready |
| Standards and clearances | MDR 2017/745, CE 0476, FDA 510(k) K181666, ATS/ERS 2019 update, ISO 26782:2009, ISO 23747:2015 |
Specifications are taken from the manufacturer documentation and may change without notice. Ask us for the current datasheet before you specify or tender.
Typical applications
- Asthma
- COPD
- Cystic fibrosis
- Exercise induced asthma
