Spirolab

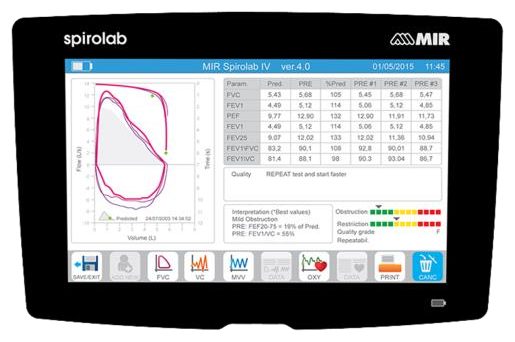

Spirolab is MIR's laboratory grade spirometer. It works as a stand alone desktop unit with a 7 inch touch screen and an embedded thermal printer, and also runs in real time on a PC over USB or Bluetooth. An oximetry option adds spot SpO2 and pulse rate.
- 7 inch touch display
- Embedded printer
- Optional oximetry
Installation, clinical application training and 24 months warranty are included. Manufacturer brochure available on request.
Key features
- 7 inch colour touch screen, 800 x 480 resolution
- Embedded 112 mm thermal printer, external printing via PC software
- Real time test on the PC screen over USB 2.0 or Bluetooth 2.1
- Calibration software on the device with a printable calibration report
- Large predicted set selection including GLI, with percent predicted, Z score and LLN
- Paediatric incentive animation on screen to improve compliance
- Memory for up to 10,000 tests
- Carrying case, charger, USB cable, noseclip and PC software licence included
Specifications
| Tests available | FVC, VC, IVC, MVV, pre and post bronchodilator |
|---|---|
| Flow sensor | Bi-directional digital turbine |
| Volume rate | 10 L |
| Flow range | 16 L/s |
| Volume accuracy | 2.5 percent or 50 mL |
| Flow accuracy | 5 percent or 200 mL/s |
| Dynamic resistance | Under 0.5 cm H2O/L/s |
| Memory capacity | Up to 10,000 tests |
| Display | 7 inch colour touch screen LCD, 800 x 480 |
| Connectivity | USB 2.0 and Bluetooth 2.1 |
| Power supply | Rechargeable Ni-MH battery pack and mains, 4500 mAh |
| Battery life | About 10 hours |
| Dimensions | 220 x 210 x 51 mm |
| Weight | 1450 g including battery pack |
| Oximetry option | SpO2 range 0 to 99 percent, accuracy 2 percent between 70 and 99 percent |
| Pulse rate | 18 to 300 BPM, accuracy 2 BPM or 2 percent |
| Standards | ATS and ERS 2019, ISO 26782, ISO 23747, ISO 80601-2-61 |
| Certification | CE 0476, FDA 510(k) K052140, Health Canada 71191 class II |
Specifications are taken from the manufacturer documentation and may change without notice. Ask us for the current datasheet before you specify or tender.
Typical applications
- Hospital pulmonary function laboratory
- Pre-employment screening
- Occupational health
- Clinical trials
