METSL · Critical Care

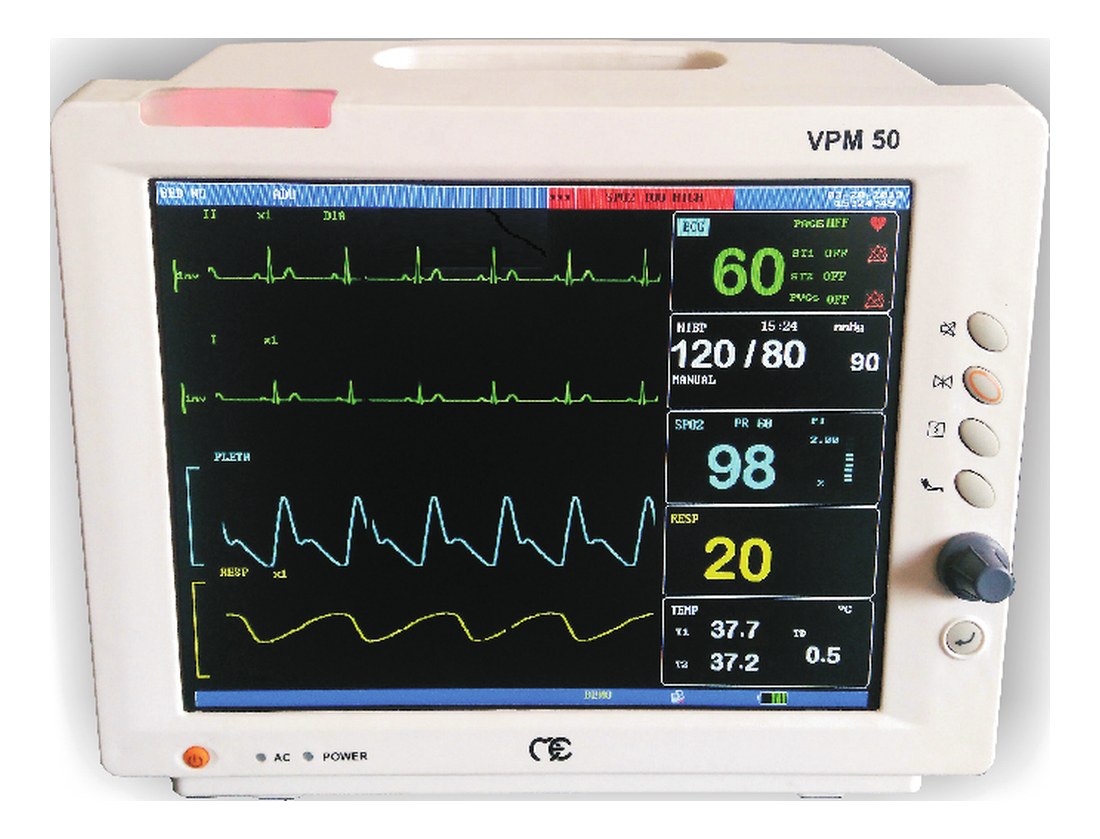

VPM 50
The VPM 50 is a compact 12.1 inch patient monitor for adult, paediatric and neonatal patients. It measures ECG, SpO2, NIBP, two temperature channels, respiration and pulse rate, shows five waveforms with heart rate, and weighs 1.5 kg so it can be carried or used in an ambulance.
- 96 hours of trend storage
- 3 or 5 lead ECG, SpO2, NIBP
- 1.5 kg, ambulance suitable
Installation, clinical application training and 24 months warranty are included. Manufacturer brochure available on request.
Key features
- 12.1 inch colour TFT with multi channel waveform display
- Five waveforms displayed with heart rate
- Standard parameters: 3/5 lead ECG, SpO2, NIBP, 2 temperature and pulse rate
- Suitable for adult, paediatric and neonatal patients
- Weighs 1.5 kg, suitable for ambulance use
- Connects to a central monitoring system
- Tabular and graphical trends held in memory
- Runs about 3 hours on the internal lithium ion battery
Specifications
| Display | 12.1 inch colour TFT, 5 waveforms with heart rate |
|---|---|
| ECG | 3 or 5 leads, leads I, II, III, aVR, aVL, aVF, V |
| ECG frequency response | Diagnostic 0.05 to 90 Hz, monitor 0.5 to 35 Hz, surgery 1 to 15 Hz |
| SpO2 | 0 to 100 per cent, dual wavelength LED, accuracy plus or minus 2 per cent for 70 to 99 per cent |
| Pulse rate | Adult 15 to 300 bpm, paediatric 15 to 350 bpm, accuracy plus or minus 1 bpm or 1 per cent |
| NIBP | Oscillometric during inflation, adult 40 to 270 mmHg, paediatric 40 to 240 mmHg, neonate 40 to 135 mmHg |
| NIBP accuracy | Plus or minus 2 mmHg or 2 per cent of reading, cycle less than 40 sec typical |
| Temperature | 2 channels, 0 to 50 degrees C, accuracy plus or minus 0.1 degrees C, YSI 400 and YSI 700 probes |
| Respiration rate | Adult 0 to 120 rpm, neonate and paediatric 0 to 150 rpm, accuracy plus or minus 2 breaths per min |
| Trends | 96 hours at 30 second intervals with an NIBP reading every 5 minutes, tabular and graphical |
| Power | AC 100 to 240 V, 50/60 Hz, 35 W |
| Battery | 14.8 V, 2200 mAh Li-ion, recharge 4.5 hours, about 3 hours operation |
| Dimensions (L x B x T) | 200 x 100 x 200 mm |
| Weight | 1.5 kg |
Specifications are taken from the manufacturer documentation and may change without notice. Ask us for the current datasheet before you specify or tender.
Typical applications
- Adult
- Paediatric
- Neonatal
