Vitalograph · Spirometers

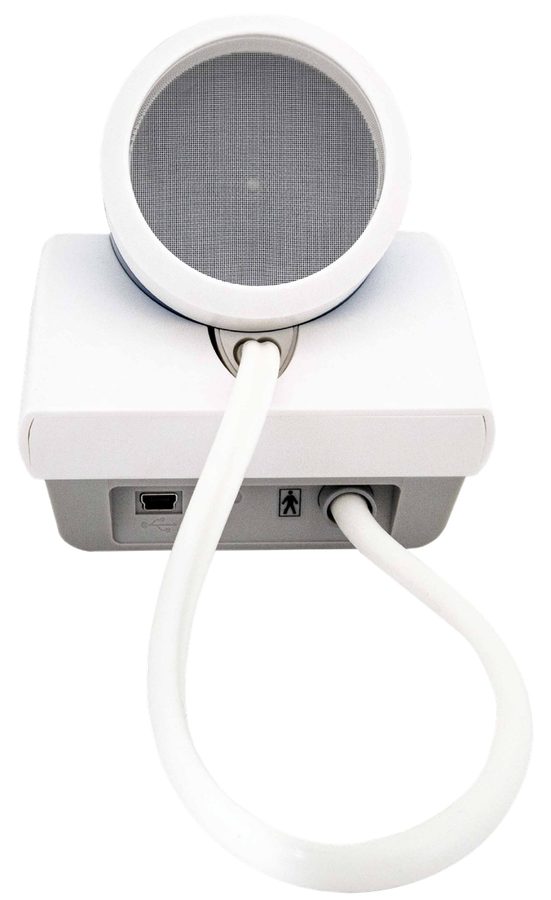

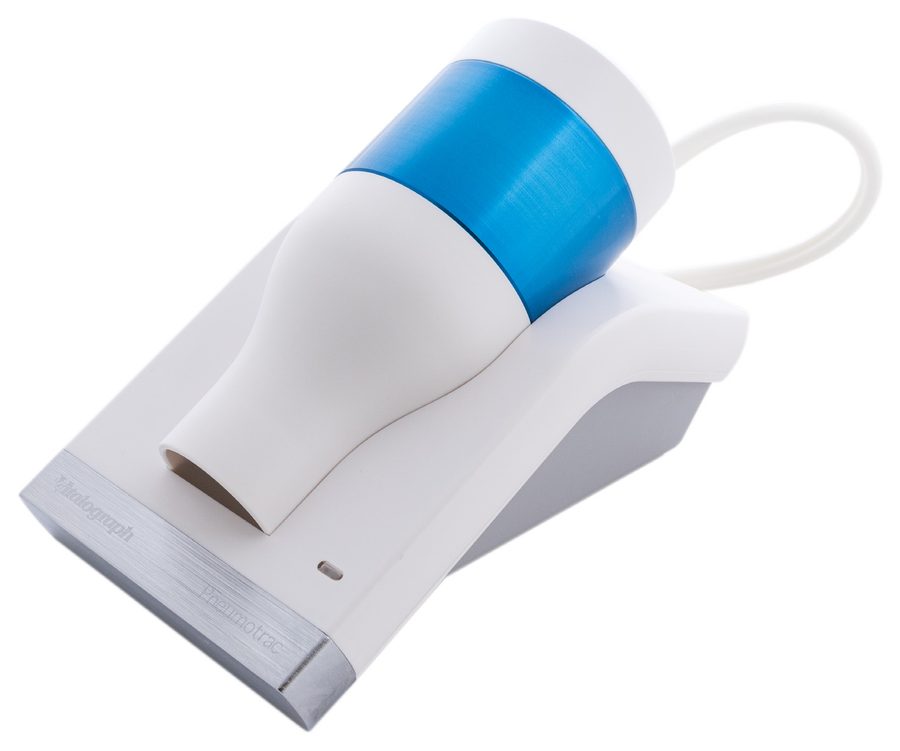

Pneumotrac
The Vitalograph Pneumotrac is a PC based spirometer that uses a Fleisch type pneumotachograph and is supplied with Spirotrac V software. It plugs into a USB port and stores test data in a central, scalable database, so results can be trended over a patient's lifetime and shared across a networked site. It suits hospital lung function rooms and occupational health services.
- No moving parts
- Autoclavable at 137 C
- Spirotrac V software, USB
Installation, clinical application training and 24 months warranty are included on every supply.
Key features
- Fleisch pneumotachograph with no moving parts, autoclavable at 137 degrees C
- Laminar flow through micro capillary tubes for linearity at low and high flows
- Robust aluminium, TPX and stainless steel construction
- Plugs into a PC USB port, portable and lightweight
- Spirotrac V shows session, flow/volume and volume/time curves in one view
- Supports single breath and multi breath spirometry, over 50 test parameters
- Automatic FEV1 trend chart against normal range as the subject is selected
- Central MS SQL database, GDT communications and links to occupational health systems
Specifications
| Flow detection principle | Fleisch type pneumotachograph |
|---|---|
| Volume detection | Flow integration sampling at 100 Hz |
| Volume accuracy | Better than ±3% (max 8 L, min 0.05 L) |
| Flow accuracy | Better than ±5% (max 16 L/s, min 0.02 L/s) |
| Linearity | ±1% in the range 0.1 L/s to 16 L/s |
| Maximum test duration | 20 s FVC, 30 s VC |
| Test types | Single breath tests, flow/volume loops, multi breath testing, tidal breathing and combined VC/FVC methods |
| Parameters displayed | User selectable from VC, IVC, IC, VT, TLC, RV, IRV, ERV, FRC, FVC, FIVC, FEV1, FEV3, FEV6, FEV1/VC, FEV1/FVC, FEV1/FEV6, FEF75, FEF50, FEF25, FEF25-75, FIV1, PIF, FIF25, FIF50, FIF75, FET, MVVind, PEF, lung age and more |
| Size | 164 x 163 x 167 mm |
| Weight | 0.58 kg |
| Power supply | From USB 2 port, 9 V battery for hygiene fan |
| Operating temperature | 17 to 37 degrees C, design limits 10 to 40 degrees C |
| PC requirements | 1.73 GHz or faster processor, 1 GB RAM, 500 MB free disk space plus 1 GB for .NET Framework V.2, Windows XP Pro SP2 or Windows 7, 1280 x 768 minimum resolution |
| Standards | ISO 26782:2009, ISO 23747:2007, ATS/ERS 2005, IEC 60601-1:2005, Medical Devices Directive 93/42/EEC |
Taken from the manufacturer documentation and subject to change without notice. Ask us for the current datasheet before you specify or tender.
Typical applications
- Hospital lung function testing
- Occupational health
- Networked multi site spirometry
What is included
InstallationCommissioned on site by our engineers and calibration verified before handover.
TrainingClinical application training on the protocols your department will run.
Warranty24 months standard, extendable at the time of order.
ServiceAMC and CAMC contracts with preventive visits and spares held locally.
Frequently asked questions
What is included in the price of the Pneumotrac?
On site installation and commissioning by our own engineers, clinical application training for your staff, and 24 months standard warranty. Consumables and accessories are quoted separately so you can see exactly what you are paying for.
How long does delivery take for the Pneumotrac?
Stocked items usually reach you within seven working days of a confirmed order. Configured systems are built to order by the manufacturer, and we confirm the lead time in writing before you release the purchase order.
Can we see the Pneumotrac demonstrated before we order?
Yes. We bring the equipment to your facility so the team can run it on a real workflow before committing. Ask for a demonstration on +91 98844 97422 and we will arrange a date.
Is service and AMC available for the Pneumotrac?
Yes. Annual and comprehensive maintenance contracts are available with scheduled preventive visits, printed calibration records for your quality file, and priority response. Spares and consumables for this system are held locally.
