SpiroSonic · Spirometers

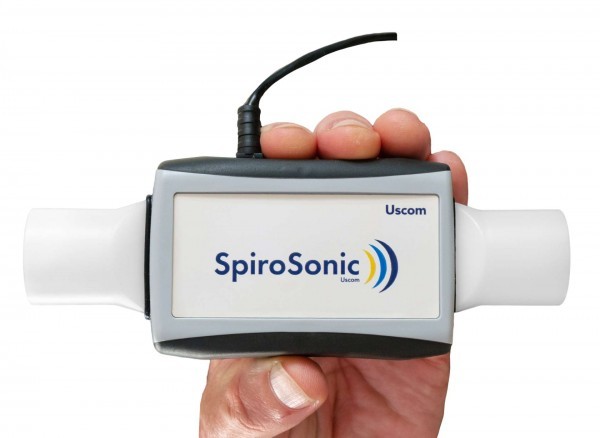

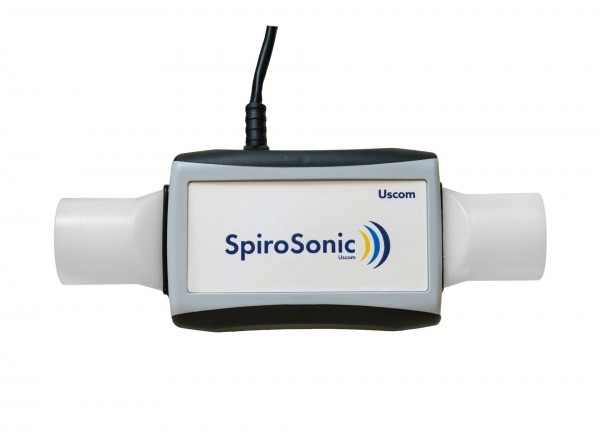

SpiroSonic FLO
SpiroSonic FLO is a USB connected ultrasonic spirometer supplied with SpiroReporter software as a complete PC solution. Multi path ultrasonic measurement has very low resistance to flow, which makes the test easier for children, elderly patients and patients with poor lung function. The sealed flow tube can be removed for cleaning and disinfection.
- Multi path ultrasonic sensing
- Suits children and frail patients
- Pairs with SpiroReporter
Installation, clinical application training and 24 months warranty are included on every supply.
Key features
- Multi path digital ultrasonic measurement with automatic internal calibration
- Low flow resistance, suitable for children, elderly and sick patients
- Sealed flow tube design allows effective cleaning and disinfection
- Connects to the PC by USB and draws its power from the USB socket
- Digital voice guided operation through SpiroReporter
- Diagnostic decision support and paediatric incentive screens in SpiroReporter
- Standard medical interfaces in the software: HL7, GDT, BDT and XML
- Optional pulse oximetry and complete stress testing procedures
Specifications
| Measuring principle | Multi path digital ultrasonic |
|---|---|
| Volume accuracy | ±2.5% or 50 mL, whichever is greater |
| Flow accuracy | ±2.5% or 50 mL/s, whichever is greater |
| Resolution | 3 mL/s |
| Maximum volume | ±20 L |
| Flow range | ±14 L/s |
| Sample rate | 100 Hz |
| Flow tube dimensions | 30 mm diameter x 165 mm |
| Device dimensions | 28 x 61 x 94 mm |
| Device weight | 122 g |
| Communication | Connection to PC by USB (Type A) |
| Power supply | USB 5 V from the PC USB socket |
| Parameters evaluated by SpiroReporter | AEX, ELA, EOTV05, EOTV1, ERV, EV, EV%FVC, FEF25, FEF50, FEF50/FIF50, FEF75, FET, FEV05, FEV075, FEV1, FEV1%FEV6, FEV1%FVC, FEV1%VC, FEV3, FEV6, FEV1/FVC, FIF25, FIF50, FIF75, FIT, FIV1, FIVC, FVC, IC, IRV, IVC, MMEF2550, MMEF2575, MMEF5075, MVV, PEF, PEFT, PIF, RR, TE, TI, TV, VC, VE, VPEF |
Taken from the manufacturer documentation and subject to change without notice. Ask us for the current datasheet before you specify or tender.
Typical applications
- Asthma
- COPD
- Occupational lung disease
- Paediatric lung function
What is included
InstallationCommissioned on site by our engineers and calibration verified before handover.
TrainingClinical application training on the protocols your department will run.
Warranty24 months standard, extendable at the time of order.
ServiceAMC and CAMC contracts with preventive visits and spares held locally.
Frequently asked questions
What is included in the price of the SpiroSonic FLO?
On site installation and commissioning by our own engineers, clinical application training for your staff, and 24 months standard warranty. Consumables and accessories are quoted separately so you can see exactly what you are paying for.
How long does delivery take for the SpiroSonic FLO?
Stocked items usually reach you within seven working days of a confirmed order. Configured systems are built to order by the manufacturer, and we confirm the lead time in writing before you release the purchase order.
Can we see the SpiroSonic FLO demonstrated before we order?
Yes. We bring the equipment to your facility so the team can run it on a real workflow before committing. Ask for a demonstration on +91 98844 97422 and we will arrange a date.
Is service and AMC available for the SpiroSonic FLO?
Yes. Annual and comprehensive maintenance contracts are available with scheduled preventive visits, printed calibration records for your quality file, and priority response. Spares and consumables for this system are held locally.
